Sett ta 'Siġill Kombinat tal-Pistin b'azzjoni doppja

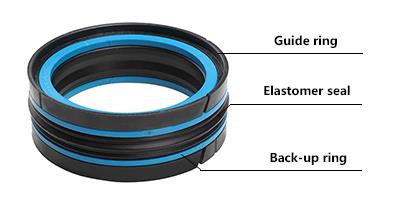

Materjal standard
| Partijiet | Materjal |  |
| Gwida taċ-ċirku | POM / PA tan-Nylon | |
| Siġill ta 'elastomer | NBR / FKM | |
| Back-up taċ-ċirku | PET |
* Materjali oħra huma disponibbli fuq talba.
Deskrizzjoni
Il-KGB (a / b) huwa siġill u element ta 'gwida b'azzjoni doppja, li jikkonsisti minn siġill elastomeriku, żewġ ċrieki ta' wara u żewġ ċrieki ta 'gwida. Iċ-ċirku ta 'wara jipprevjeni ċ-ċirku tas-siġill tal-elastomeru mill-estrużjoni taħt vojt kbir tas-siġillar. Iċ-ċirku ta 'gwida jaġixxi biex jiggwida l-pistun fiċ-ċilindru u jassorbi l-forza radjali.
Dan id-disinn jipprovdi kombinazzjoni kompatta ta 'siġill u gwida għal kanal tal-immuntar miftuħ jew magħluq, u jaħdem tajjeb kemm fis-sistema statika kif ukoll fid-dinamika.
|
|
Vantaġġi
- Reżistenza għolja għall-ilbies - Disinn sempliċi tal-pistuni b'biċċa waħda - Reżistenza għolja ta 'estrużjoni - Kontroll tal-fluwidu tajjeb - Tista 'tiġi installata fi skanalaturi magħluqa biex tnaqqas l-ispejjeż tal-ipproċessar - Issiġilla u jiggwida l-effetti multi-funzjonali - Faċli biex tinstalla, billi żżomm iċ-ċirku li jżomm u l-anella gwida |  |
Applikazzjoni
Għodda tal-magni
Autocrane
Forklift u makkinarju ta 'tqandil
Makkinarju agrikolu
Kundizzjoni tax-xogħol
Veloċità | Pressjoni | Temperatura | Il-midja | Dijametru fornut |
0.5m/s | 0 ~ 35 Mpa | -30℃~+100℃ | Żejt idrawliku bbażat fuq il-pitrolju, fluwidu idrawliku ritardant tal-fjammi, żejt idrawliku sikur għall-ambjent (bijo-żejt), ilma u oħrajn, skont il-materjal tas-siġill. | 20 mm-330mm |

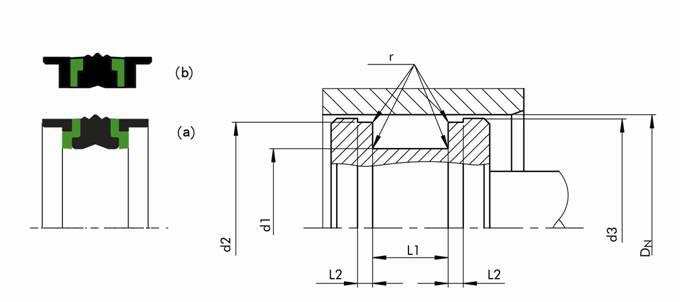

Tpinġija Teknika
Lista tal-Ispeċifikazzjonijiet
| Parti nru | DN H 9 | d1 h9 | L1+0.2 | L2+0.1 | d2 h9 | d3 h11 | TP |
| KGB 20 11 | 20 | 11 | 13.5 | 2.1 | 17 | 19 | (a) |
| KGB 25 15 | 25 | 15 | 16.4 | 6.35 | 21.45 | 23.5 | (a) |
| KGB 25 15 / A | 25 | 15 | 12 | 4 | 21 | 23 | (a) |
| KGB 25 16 | 25 | 16 | 13.5 | 2.1 | 22 | 24 | (a) |
| KGB 30 17 | 30 | 17 | 15.4 | 6.35 | 26.5 | 29 | (a) |
| KGB 30 21 | 30 | 21 | 13.5 | 2.1 | 27 | 29 | (a) |
| KGB 32 22 | 32 | 22 | 16.4 | 6.35 | 28.5 | 30.5 | (a) |
| KGB 32 22 / A | 32 | 22 | 15.5 | 2.6 | 28 | 31 | (a) |
| KGB 32 24 | 32 | 24 | 15.5 | 3.2 | 28 | 31.4 | (a) |
| KGB 35 25 | 35 | 25 | 16.4 | 6.35 | 31.4 | 33.5 | (b) |
| KGB 35 25 / A | 35 | 25 | 15.5 | 2.6 | 31 | 34 | (a) |
| 40 KGB 24 | 40 | 24 | 18.4 | 6.35 | 35.4 | 38.5 | (a) |
| KGB 40 26 | 40 | 26 | 15.5 | 2.6 | 36 | 39 | (a) |
| 40 KGB 30 | 40 | 30 | 16.4 | 6.35 | 35.4 | 38.5 | (a) |
| KGB 40 30 / A | 40 | 30 | 12.5 | 4 | 36 | 338 | (a) |
| KGB 40 32 | 40 | 32 | 15.5 | 3.2 | 36 | 39.4 | (b) |
| KGB 45 29 | 45 | 29 | 18.4 | 6.35 | 40.4 | 43.7 | (a) |
| KGB 45 31 | 45 | 31 | 15.5 | 2.6 | 41 | 44 | (a) |
| KGB 45 35 | 45 | 35 | 16.4 | 6.35 | 40.4 | 43.5 | (a) |
| KGB 50 34 | 50 | 34 | 18.4 | 6.35 | 45.4 | 48.5 | (a) |
| KGB 50 34 / A | 50 | 34 | 20.5 | 3.1 | 46 | 49 | (a) |
| KGB 50 38 | 50 | 38 | 20.5 | 4.2 | 46 | 49.4 | (b) |
| 55 KGB 39 | 55 | 39 | 18.4 | 6.35 | 50.36 | 53.5 | (a) |
| KGB 55 39 / A | 55 | 39 | 20.5 | 3.1 | 51 | 54 | (a) |
| KGB 55 43 | 55 | 43 | 20.5 | 4.2 | 51 | 54.4 | (a) |
| KGB 60 44 | 60 | 44 | 18.4 | 6.35 | 55.4 | 58.5 | (a) |
| KGB 60 44 / A | 60 | 44 | 20.5 | 3.1 | 56 | 59 | (a) |
| KGB 60 48 | 60 | 48 | 20.5 | 4.2 | 56 | 59.4 | (b) |
| KGB 63 47 | 63 | 47 | 18.4 | 6.35 | 58.4 | 61.5 | (a) |
| KGB 63 47 / A | 63 | 47 | 20.5 | 3.1 | 59 | 62 | (a) |
| KGB 63 51 | 63 | 51 | 20.5 | 4.2 | 59 | 62.4 | (b) |
| 65 KGB 49 | 65 | 49 | 20.5 | 3.1 | 61 | 64 | (a) |
| 65 50 KGB | 65 | 50 | 18.4 | 6.35 | 60.4 | 63.5 | (a) |
| KGB 70 50 | 70 | 50 | 22.4 | 6.35 | 64.2 | 68.3 | (a) |
| KGB 70 54 | 70 | 54 | 20.5 | 3.1 | 66 | 69 | (a) |
| KGB 70 58 | 70 | 58 | 20.5 | 4.2 | 66 | 69.4 | (b) |
| 75 KGB 55 | 75 | 55 | 22.4 | 6.35 | 69.2 | 73.3 | (a) |
| 75 KGB 59 | 75 | 59 | 20.5 | 3.1 | 71 | 74 | (a) |
| KGB 80 60 | 80 | 60 | 22.4 | 6.35 | 74.15 | 78.3 | (a) |
| KGB 80 62 | 80 | 62 | 22.5 | 3.6 | 76 | 79 | (a) |
| KGB 80 66 | 80 | 66 | 22.5 | 5.2 | 76 | 79.4 | (b) |
| 85 KGB 65 | 85 | 65 | 22.4 | 6.35 | 79.15 | 83.3 | (a) |
| KGB 90 70 | 90 | 70 | 22.4 | 6.35 | 84.15 | 88.3 | (a) |
| KGB 90 72 | 90 | 72 | 22.5 | 3.6 | 86 | 89 | (a) |
| KGB 90 76 | 90 | 76 | 22.5 | 5.2 | 86 | 89.4 | (b) |
| 95 75 KGB | 95 | 75 | 22.4 | 6.35 | 89.15 | 93.3 | (a) |
| KGB 100 75 | 100 | 75 | 22.4 | 6.35 | 93.15 | 98 | (a) |
| KGB 100 80 | 100 | 80 | 25.4 | 6.35 | 94.15 | 98.3 | (a) |
| KGB 100 82 | 100 | 82 | 22.5 | 3.6 | 96 | 99 | (a) |
| KGB 100 86 | 100 | 86 | 22.5 | 5.2 | 96 | 99.4 | (b) |
| 105 KGB 80 80 | 105 | 80 | 22.4 | 6.35 | 98.1 | 103 | (a) |
| KGB 110 85 | 110 | 85 | 22.4 | 6.35 | 103.1 | 108 | (a) |
| KGB 110 92 | 110 | 92 | 22.5 | 3.6 | 106 | 109 | (a) |
| KGB 110 96 | 110 | 96 | 22.5 | 5.2 | 106 | 109.4 | (b) |
| KGB 115 90 | 115 | 90 | 22.4 | 6.35 | 108.1 | 113 | (a) |
| KGB 120 95 | 120 | 95 | 22.4 | 6.35 | 113.1 | 118.1 | (a) |
| KGB 120 106 | 120 | 106 | 22.5 | 5.2 | 116 | 119.4 | (b) |
| KGB 125 100 | 125 | 100 | 25.4 | 6.35 | 118.1 | 123 | (a) |
| KGB 125 103 | 125 | 103 | 26.5 | 5.1 | 121 | 124 | (a) |
| KGB 125 108 | 125 | 108 | 26.5 | 7.2 | 121 | 124.4 | (b) |
| KGB 130 105 | 130 | 105 | 25.4 | 9.5 | 122.6 | 127.5 | (a) |
| KGB 130 105 / A | 130 | 105 | 25.4 | 6.35 | 123.1 | 128 | (a) |
| KGB 135 110 | 135 | 110 | 25.4 | 9.5 | 127.6 | 132.5 | (a) |
| KGB 135 110 / A | 135 | 110 | 25.4 | 6.35 | 128.1 | 133 | (a) |
| KGB 140 115 | 140 | 115 | 25.4 | 9.5 | 132.6 | 137.5 | (a) |
| KGB 140 115 / A | 140 | 115 | 25.4 | 6.35 | 133 | 138 | (a) |
| KGB 140 118 | 140 | 118 | 26.5 | 5.1 | 136 | 139 | (a) |
| KGB 140 123 | 140 | 123 | 26.5 | 7.2 | 136 | 139.4 | (b) |
| 145 KGB 1201 | 145 | 120 | 25.4 | 9.5 | 137.6 | 142.5 | (a) |
| KGB 145 120 / A | 145 | 120 | 25.4 | 6.35 | 138.3 | 142.95 | (a) |
| KGB 150 125 | 150 | 125 | 25.4 | 9.5 | 142.6 | 147.5 | (a) |
| KGB 150 125 / A | 150 | 125 | 25.4 | 6.35 | 143 | 148 | (a) |
| KGB 160 130 | 160 | 130 | 25.4 | 6.35 | 153 | 157.5 | (a) |
| KGB 160 130 / A | 160 | 130 | 25.4 | 9.5 | 152.6 | 157.5 | (a) |
| KGB 160 135 | 160 | 135 | 25.4 | 9.5 | 152.6 | 157.5 | (a) |
| 170 145 KGB | 170 | 145 | 25.4 | 12.7 | 161.7 | 167.1 | (a) |
| 175 150 KGB | 175 | 150 | 25.4 | 12.7 | 166.7 | 172.1 | (a) |
| KGB 180 155 | 180 | 155 | 25.4 | 12.7 | 171.7 | 177.1 | (a) |
| KGB 185 160 | 185 | 160 | 25.4 | 12.7 | 176.7 | 182.1 | (a) |
| KGB 190 165 | 190 | 165 | 25.4 | 12.7 | 181.7 | 187 | (a) |
| KGB 200 175 | 200 | 175 | 35.4 | 12.7 | 191.6 | 197 | (a) |
| 220 KGB 190 | 220 | 190 | 25.4 | 6.35 | 121.7 | 217.9 | (a) |
| 220 KGB 195 | 220 | 195 | 25.4 | 12.7 | 211.6 | 217 | (a) |
| KGB 250 220 | 250 | 220 | 31.5 | 6.35 | 242.9 | 247.9 | (a) |
| KGB 250 225 | 250 | 225 | 25.4 | 12.7 | 241.6 | 247 | (a) |
| KGB 280 255 | 280 | 255 | 25.4 | 12.7 | 271.6 | 277 | (a) |
| KGB 300 275 | 300 | 275 | 31.5 | 6.6 | 296 | 299 | (a) |
| KGB 320 295 | 320 | 295 | 25.4 | 12.7 | 311.6 | 317 | (a) |
| KGB 360 335 | 360 | 335 | 25.4 | 12.7 | 351.6 | 357 | (a) |
| KGB 380 355 | 380 | 355 | 25.4 | 12.7 | 371.6 | 377 | (a) |
| KGB 400 375 | 400 | 375 | 25.4 | 12.7 | 391.6 | 397 | (a) |
FAQ
1. Liema kulur huwa s-siġill tal-pistun KGB tiegħek?
Ġeneralment iswed / blu, għandna wkoll vjola, abjad disponibbli fuq talba.
2. Int kapaċi tagħżel materjal xieraq, tip ta 'siġill skont il-kundizzjoni tax-xogħol taċ-ċilindru tagħna?
Iva, noffru konsultazzjoni tenika qabel l-ordni. Jekk jogħġbok ibgħatilna l-kundizzjoni tax-xogħol jew kull tpinġija, dettalji tad-daqs taċ-ċilindru, allura aħna nindunaw is-soluzzjoni l-iktar xierqa għalik.
3. X'inhu&# 3 9; i l-metodu tal-ippakkjar ta 'dan il-prodott?
Is-siġill kumpatt l-ewwelnett se jkun stralċjat b'film shrink, 10 pcs kull roll.
Kwantità xierqa għal kartuna. Aħna nappoġġjaw ippakkjar tad-dwana u tikketta fuq l-oġġetti kollha.
4. X'inhu t-terminu ta 'ħlas tiegħek?
Paypal, T / T jew L / C.
